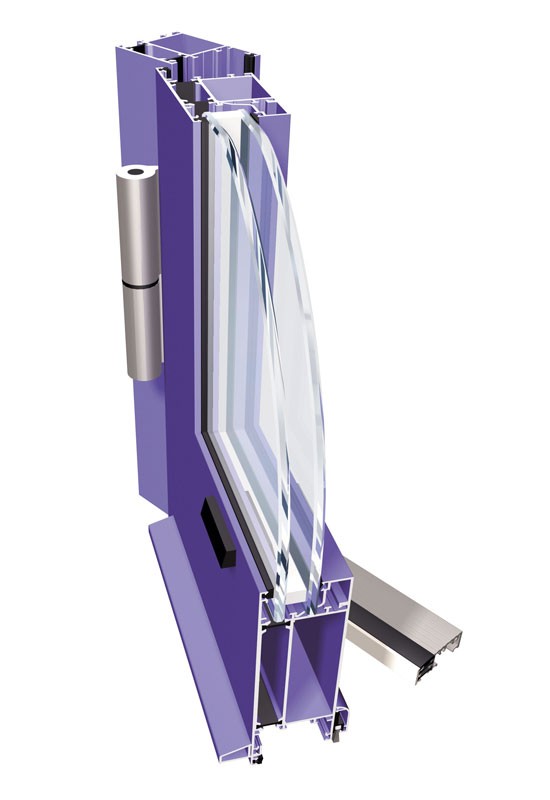

PONZIO PT 52

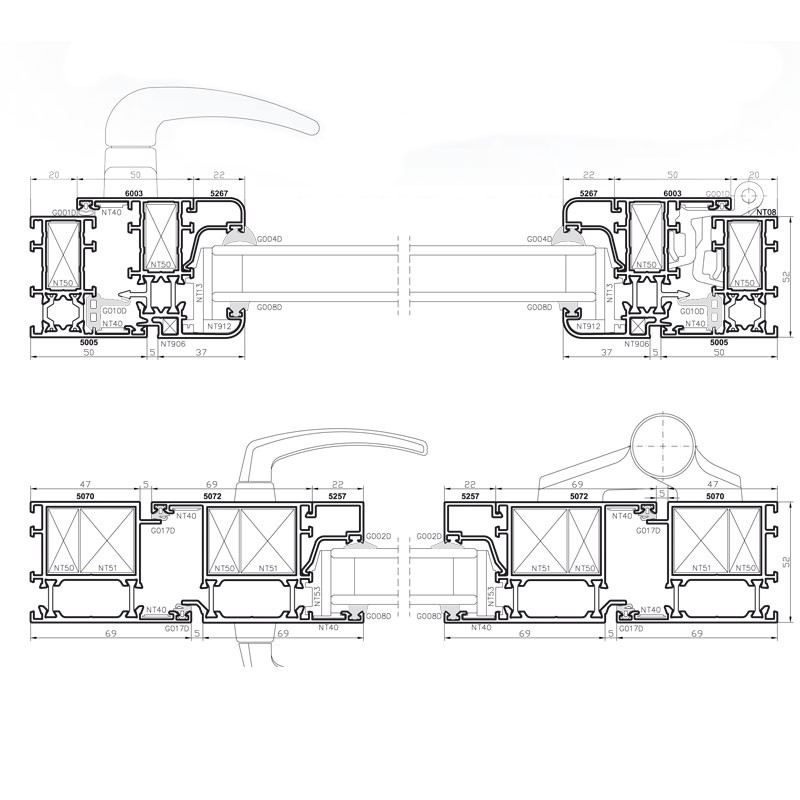

The system with thermal insulation is assigned for accomplishing outside building elements rated to the RMG 2.1 material group. There are plenty of solutions for the window and door construction. The application thermal distance piece ensure correct dehydration. The widht of frames and sashes is 52 – 60 mm.

Characteristics of system

precise relation to other Ponzio systems, possibility of installing windows and doors into facade systems, facing of window sashes (one plane outside) and doors (two planes outside and inside), use of modern two components EPDM gaskets with perfect thermal insulation, estetic appearance and easy to montage, variety of door sashes, many ways of accomplishing corner connections: torsion, studding or kneading.

aluminium profiles
EN AW-6060 according to PN-EN 573-3/T6 according to PN-EN 515 Al Mg Si 0,5 F22 according to DIN 1725 T1
Thermal insulation
heat penetration coefficient (for frame) Uf = 2,4-2,75 W/m2K
fillings
single or packet window panels with any kind of glass or opaque panels
surface finishing
powder coating with polyester on chromate undercoater according to Qualicoat standards, any RAL colour at choice; anodized in colours: natural aluminium, olive, champagne, gold, “old gold”, brown – according to Qualanod standards
gaskets
synthetic caoutchouc EPDM according to DIN7863 and standard according to DIN7715 E2
connecting accessories
corner joints, screws, tap bolts, aluminium washers, inox or galvanized
furniture
renowned companies only:Fapim, Savio, Iseo, Cisa, Hautau, Geze, KFV etc.
permissions and quality certificates
Type tests according PN-EN 14351
