PONZIO PT 60 DOOR

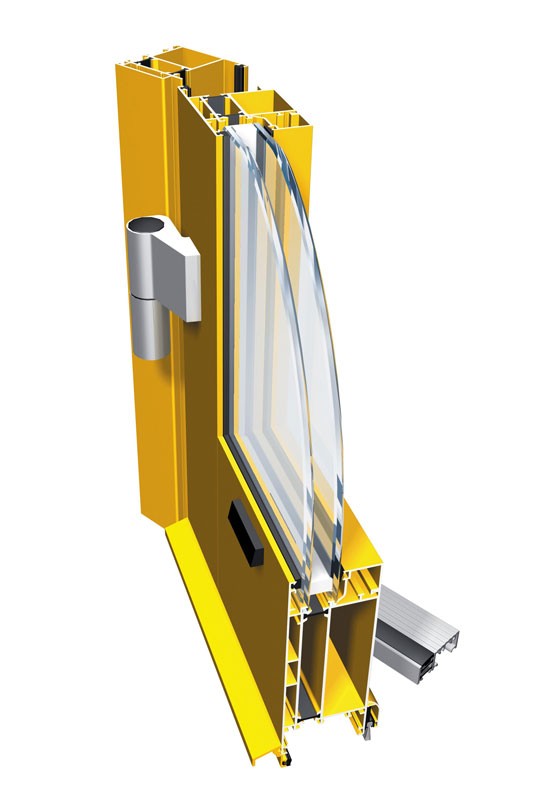

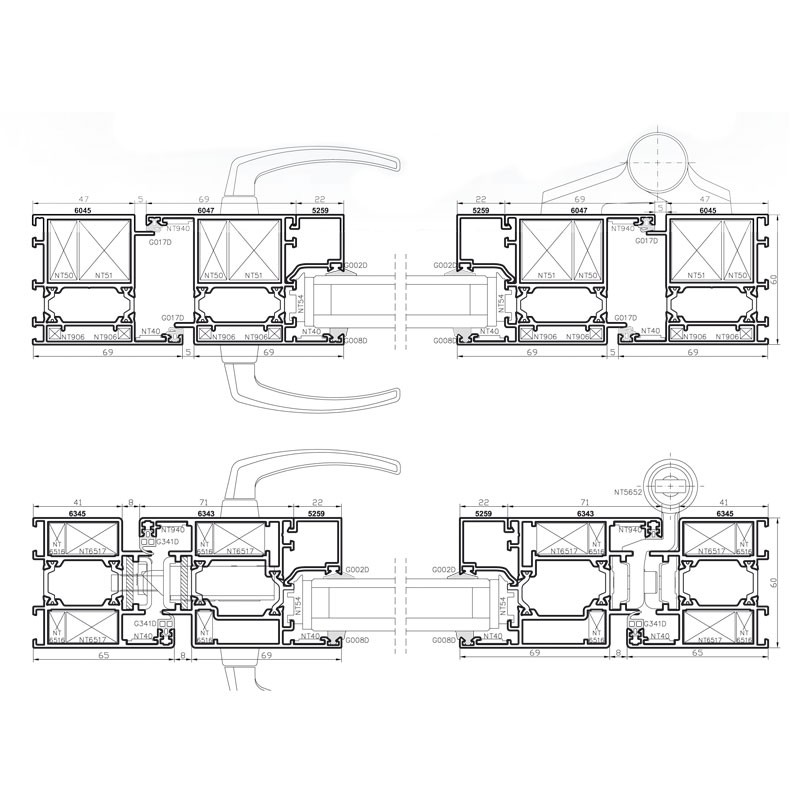

The three chamber door profile system with frame thickness 60 mm. PT 60 allows for making doors with one and two sashes, inward and outward opening with different solutions for thresholds. System guarantee simple mounting of accessories which considerably increase speed of making construction. In PT 60 it is also possible made of doors with central cabinet hardware. Three chamber symetrical construction of profiles and use two torsion corner connecting members in each corner allow to made stables corner connections. Using notch hinges make mounting door leaf easy.


Characteristics of system

  • relation to other Ponzio systems (especially with frame width 60 mm),
  • facing of door leafes in coplanar doors
  • many wariants of making door leafes: with wide beam or cutting leaf at 45 degrees, without or with threshold
  • fillings: 8-48 mm,
  • use of modern two components EPDM gaskets.

aluminium profiles
EN AV-6060 according to PN-EN 573-3 / T66 according to PN-EN 515 Al Mg Si 0,5 F22 according to DIN 1725 T1, DIN 17615 T1
Thermal insulation
heat penetration coefficient (of frame) Uf = 2,6 - 2,8 W/m2K
fillings
single or packet window panels with any kind of glass or opaque panels
surface finishing
powder coating with polyester on chromate undercoater accoording to Qualicoat standards, any RAL colour at choice; anodized in colours: natutal aluminium, olive, champagne, gold, old gold, brown - according to Qualanoad standards, lacquered for colour imitated wood
gaskets
synthetic caoutchouc EPDM according to DIN 7863 and standard according to DIN ISO 3302-1, E2
connecting accessories
corner joints, screws, tap bolts, aluminium washers, inox or galvanized
furniture
renowned companies only: Fapim, Savio, Iseo, Cisa, Geze, KFV, etc.
permissions and quality certificates
Compatibility certificate : 2 class of antiburglary according to PN-ENV 1627:2006. Type tests according PN-EN 14351-1:2006
